Digilent Analog Discovery Studio: A portable circuits laboratory for every engineer.

The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling circuit design anywhere!

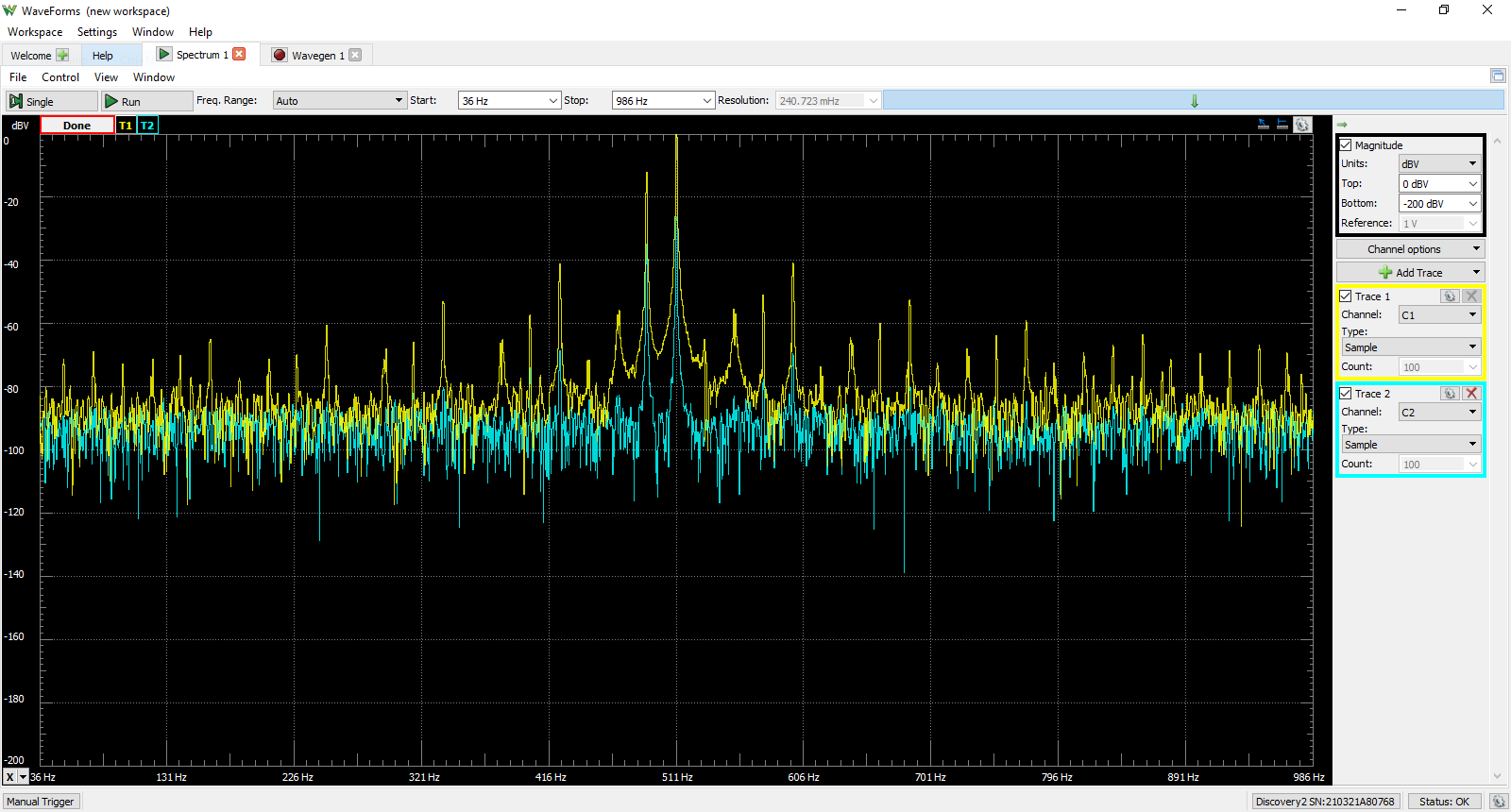

What is WaveForms?
WaveForms is the free software application for the Analog Discovery Studio and enables use of the available analog and digital instruments. The software has been refined by customer feedback for over 10 years and features a computer and laptop friendly user interface that has the feel of traditional benchtop software. The Analog Discovery Studio communicates with WaveForms via a USB connection to your computer, allowing users to capture, record, analyze, and generate mixed signal and mixed domain waveforms. WaveForms can be downloaded and installed in under 60 seconds and can be tested without hardware using its demo mode feature. In addition to the use of instruments in the application, WaveForms has a script editor tool, which allows custom scripting of the instrument in JavaScript.

Operating system compatibility

WaveForms is designed to be run on a laptop or desktop computer and is Mac, Windows, and Linux compatible.

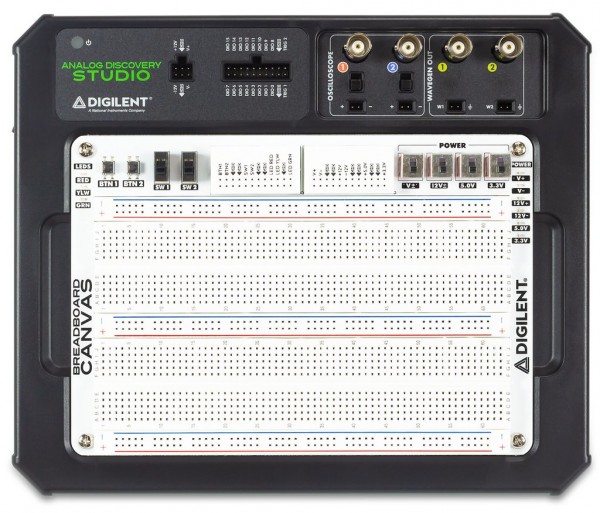

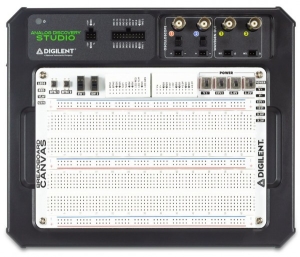

The Analog Discovery Studio is designed to be a compact alternative to a stack of benchtop equipment. Its durable enclosure measures 1.25 x 9.25 x 7.5 inches and fits on a bench, desktop, or backpack. Students can access the Oscilloscope and Waveform Generators via breadboardable MTE cables, or industry standard BNC cables, and the Logic Analyzer, Pattern Generator, and Triggers can be accessed via MTE cables.

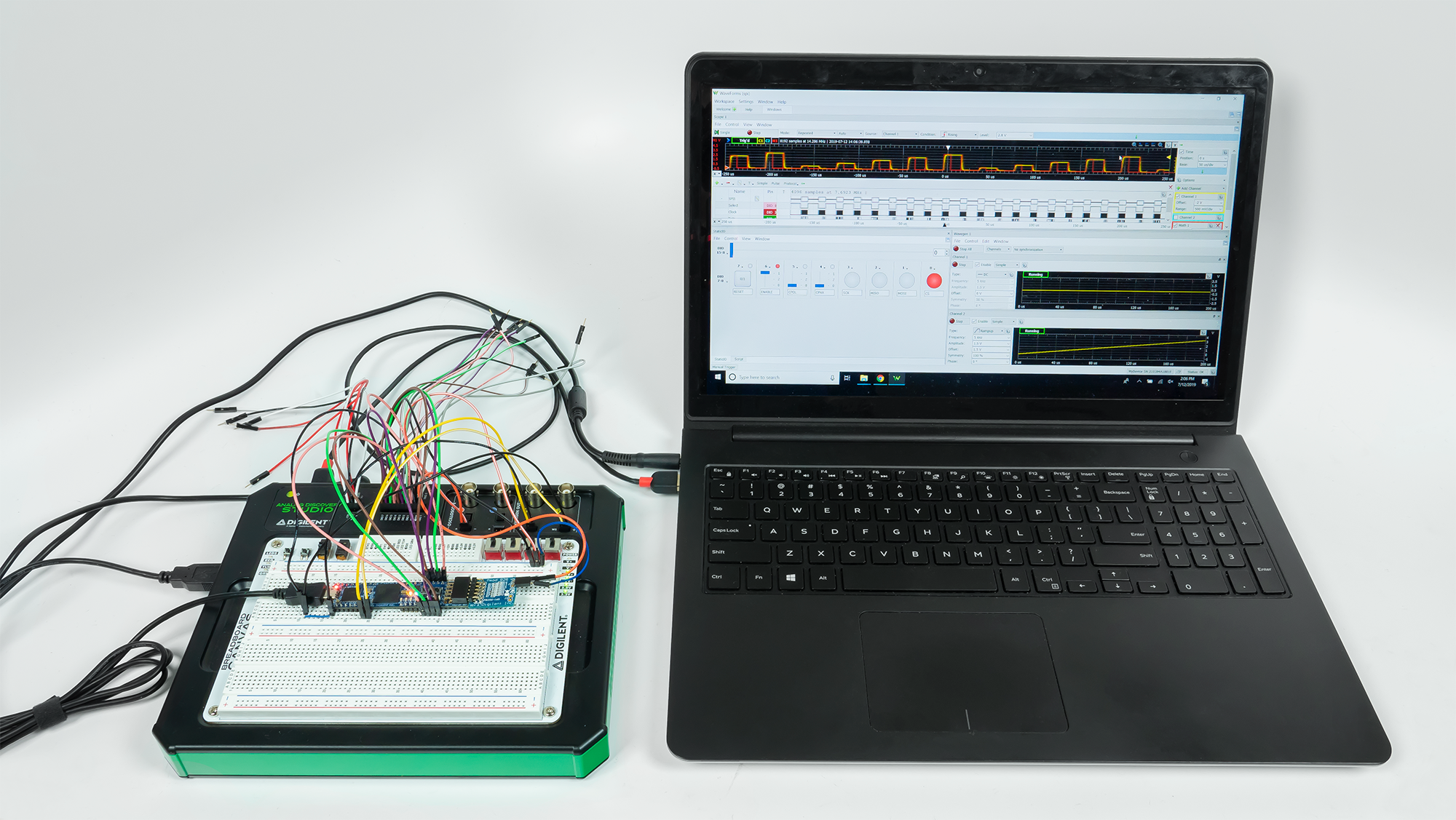

Circuits or designs can be built on the included, magnetically connected Breadboard Canvas and conveniently swapped out or removed for transit, making the transition from working in the lab to working at home as seamless as possible. The Breadboard Canvas also includes power supply outputs controlled by physical switches, common I/O built-in, and a large breadboardable surface.

Software Compatibility:

  • Along with the stable WaveForms application, the Analog Discovery Studio is also a programmable USB oscilloscope and logic analyzer. For more advanced users who require building applications or automated tests, WaveForms Software Development Kit (SDK) is also provided. The WaveForms SDK provides libraries and examples for creating custom application in Python, C++, C#, and Visual Basic.
  • Additional 3rd party toolbox support, examples, and documentation is available for MATLAB and LabVIEW from MathWorks and National Instruments, respectively. Perfect for comparing simulation and actual results.
  • More information on specific operating system and programming language details can be found on the WaveForms resource center. Questions about compatibility and operating systems should be directed to the Digilent Forum.



Order the Analog Discovery Studio today in Elfa Distrelec
