Eclypse Z7 Bundle: Perfect platform for embedded measurement system

The Eclypse Z7 Bundle gives you the chance to create your own embedded measurement system for your needs. A pair of Zmod DAC and  Zmod ADC together with Eclypse Z7 Platform can be used for closed analog loops including digital control, digital filters with analog input and output, hardware-in-the-loop, digital signal processing, high-frequency modulators/demodulators, real-time image processing and software defined radio (SDR).

What’s included in the bundle

The Eclypse Z7 features a Zynq 7020 FPGA SoC from Xilinx and two high-speed connectors using Opal Kelly’s new SYZYGY standard, which pairs with Digilent’s new Zmod family to allow for high performance I/O.

The Zmod ADC 1410 is equipped with Analog Devices AD9648, the dual channel, high speed, low power, 14-bit, 105MS/s Analog to Digital Converter (ADC). Driven by the SYZYGY carrier, the Zmod ADC can acquire two simultaneous signals (1MΩ, ±25V, single-ended, 14-bit, 100MS/s, 70MHz+ bandwidth). Analog inputs can be connected to a circuit using SMA cables.

The Zmod DAC 1411 is equipped with Analog Devices AD9717 the dual channel, high speed, low power, 14-bit, 125MS/s Digital to Analog Converter (DAC). Driven by the SYZYGY carrier, the Zmod DAC can generate two simultaneous signals (50Ω, ±5V, single-ended, 14-bit, 100MS/s, 40MHz+ bandwidth). The analog outputs can be connected to a circuit using SMA cables.

The bundle comes with a free example project and show users the implementation of a signal processing system.

Protect the bundle with the Enclosure Kit

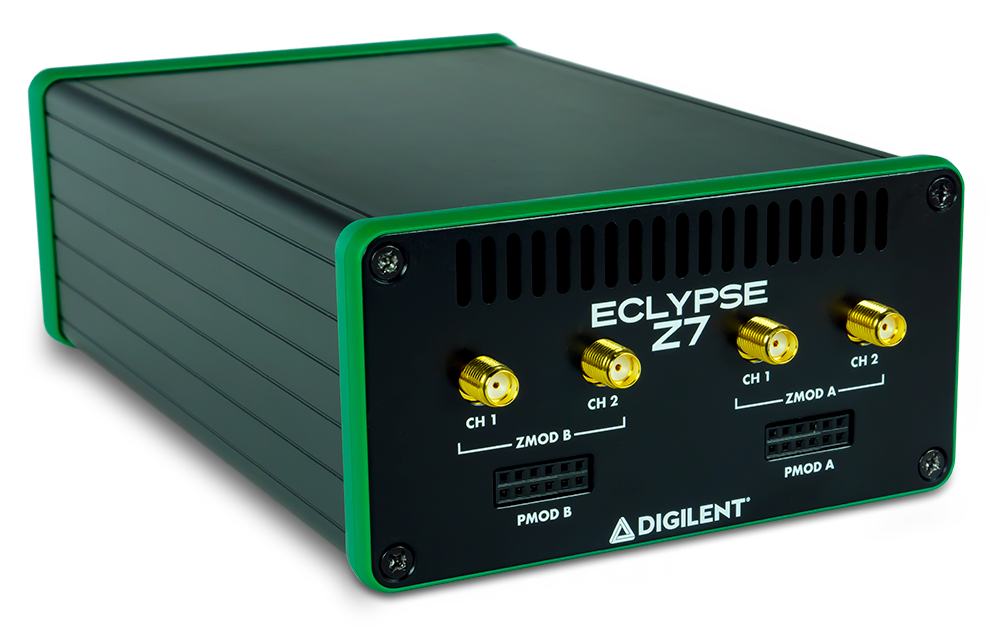

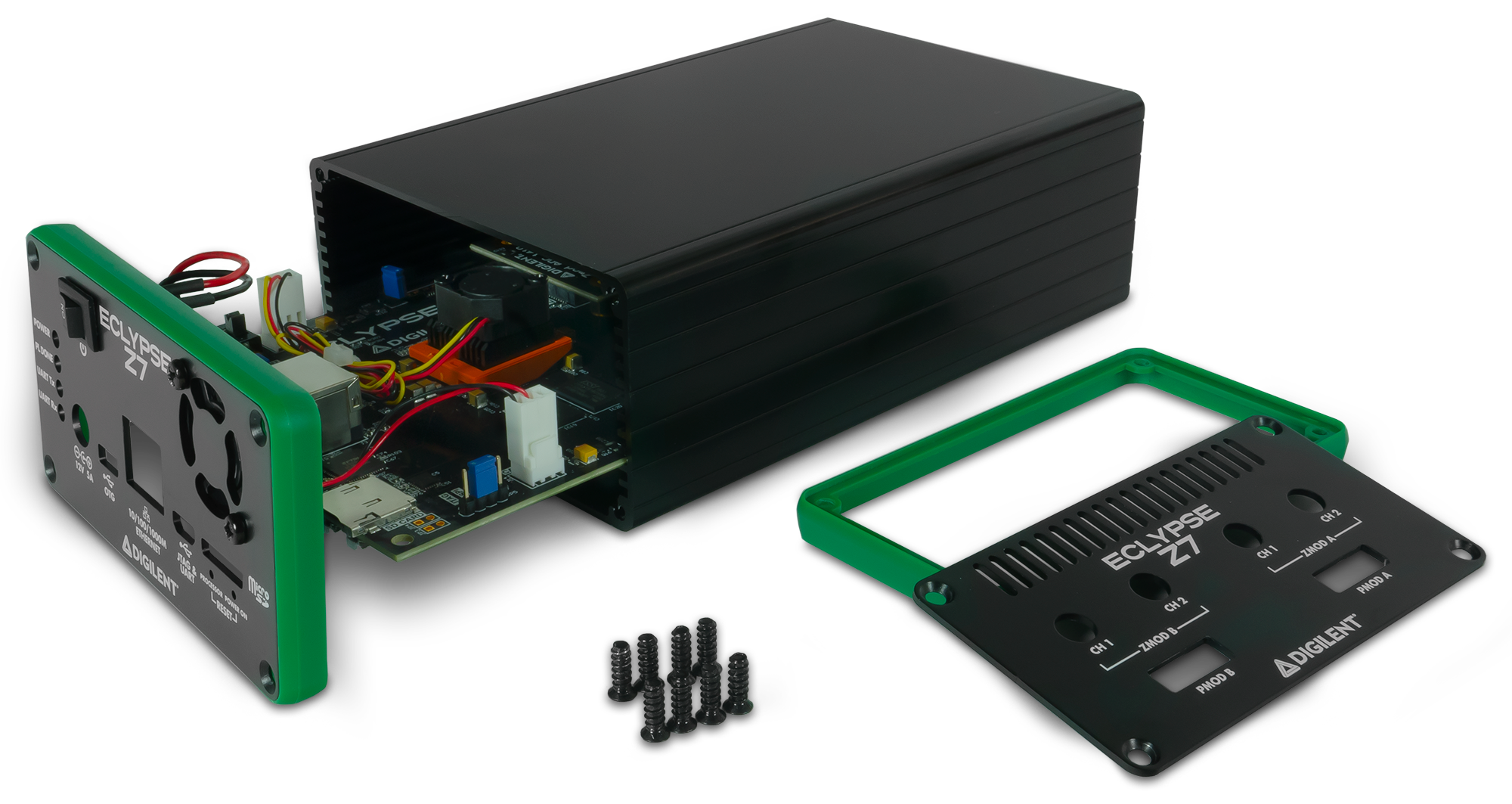

If you want to protect your investment and can give your hardware a sleek, now you can with the Eclypse Z7 Enclosure Kit. Machined from black anodized aluminum, the Eclypse Z7 Enclosure Kit provides a sturdy housing for your Eclypse platform hardware. The front panel of the enclosure provides a power switch and fan as well as access to the Eclypse Z7’s status LEDs, power supply connection, microSD card slot, and OTG, JTAG, UART, and Ethernet connections. The rear panel exposes connections to the four SMA connectors of two Zmods installed on the Eclypse Z7 board and the board’s 2×6 Pmod connectors.

Eclypse Z7 bundle and Enclosure Kit are available through Elfa Distrelec.
