Tektronix Arbitrary Waveform Generator Meets Demanding Signal Generation Needs

Tektronix, Inc. introduces a new arbitrary waveform generator (AWG) that offers high signal fidelity and scalability at an affordable price point to meet demanding signal generation needs in advanced research, electronic test, and radar and electronic warfare (EW) system design and test.

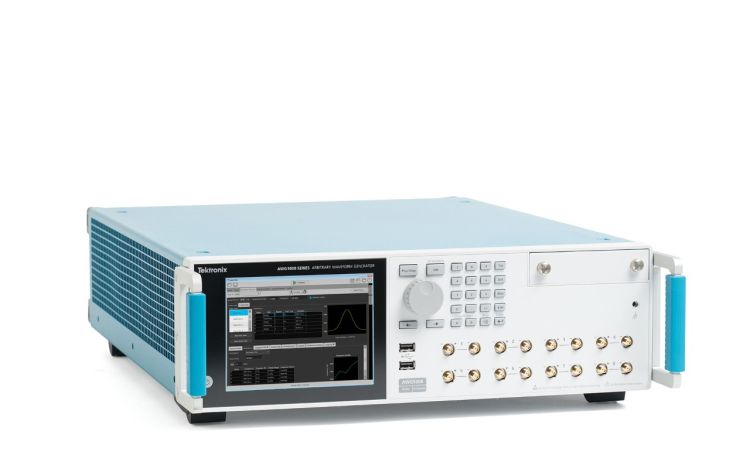

The new AWG5200 series offers an impressive set of capabilities not previously available in the market all in one instrument, including a 10 GS/s sample rate, 16-bit resolution and up to 8 channels per unit along with support for multiple unit synchronization. It includes a flexible waveform generation plug-in suite with comprehensive coverage for a wide variety of standards and digital modulation techniques. It also lowers the cost of ownership for complex multi-signal environments starting at a list price of about $11,000 per channel for the 8 channel instrument.
At the heart of the AWG5200 series instruments are new high performance digital-analog converters (DACs) that offer a mix of speed and resolution within a fully-integrated product package. With its powerful DAC cores, the AWG can directly generate highly detailed RF/EW signals or the complex pulse trains used in advanced research. The 16-bit vertical resolution is the best fully-integrated AWG available in the industry compared to alternatives at 14-bits resolution.
RF/Radar/EW Signal Generation
Engineers developing radar/EW systems and components require high-fidelity, tightly synchronized multi-channel signal generation to stimulate radar receivers for design, troubleshooting and operational testing. The AWG5200 provides 8 independent channels with better than 10 ps channel to channel skew. Each of the AWG5200’s channels have independent paths out, individual amplification, separate sequencing, up-conversion, dedicated memory and can be controlled independently without cross talk or limitations on any channels performance.  The only common factor is that all channels share a common clock or, if the users chooses, can input an external reference clock.
This level of independence and flexibility along with 16-bit resolution, less than 2us latency & fast rise times make the AWG5200 an excellent source for generating complex, real-world environments, testing phased arrays, simulating objects of interest or replacing older equipment with new COTS (commercial of the shelf) solutions.
It also allows RF designers to consolidate signal generation using direct signal generation techniques and eliminating the need for specialized – and costly – signal generation equipment. RF designers can also leverage a growing library of plugins for generating waveforms, predistort waveforms for optimal performance or automate tests using Matlab scripts. The AWG5200 is also code compatible with previous generation Tektronix AWGs.
Signal generation is becoming increasingly important in a range of advanced research applications including quantum computing, nano/micro technology development, biomedical and physics. However, high performance signal generators are expensive, inflexible, and often still cannot meet fidelity, latency, and synchronization needs. In response, some researchers have turned to home-built equipment that is uncalibrated, unstable, and lacks support. And none of the current alternatives can scale without additional effort or money.
In quantum computing, for example, scalability is a key requirement as researchers need the ability to send dozens of synchronized signals to quantum compute cores. Each AWG5200 can be equipped out-of-the-box with up to 8 synchronized channels. For additional scalability, multiple units can be synchronized to provide unlimited channel count. By reducing the time and stress involved with scaling experiments, researchers are freed up to focus on iterating their design and thus can more quickly realize breakthroughs.
