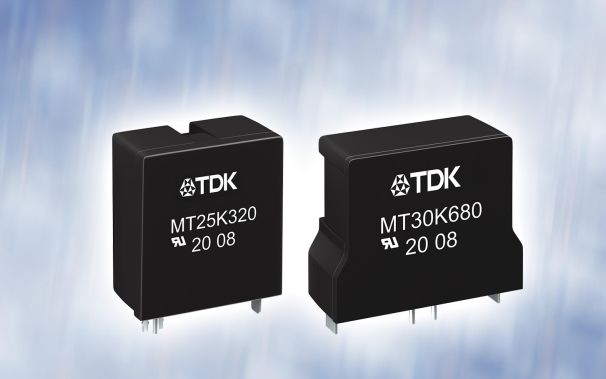

TDK Corporation (TSE: 6762) presents two new series of ThermoFuse® varistors, which are equipped with monitor outputs and integrated thermal protective components for overvoltage protection. The MT25 series (B72225M*) currently covers a voltage range from 150 VRMS to 385 VRMS, and its maximum surge current capability is 20 kA at a pulse form of 8/20 µs, according to IEC 61643-11.
With dimensions of 25 x 28 x 14 mm, the completely encapsulated protective components feature a particularly compact design. Their monitor outputs are optionally available with or without electrical isolation. The MT30 series (B72230M*) includes types, which are designed for voltages from 150 VRMS to 750 VRMS.
Its maximum surge current capability is 25 kA at a pulse form of 8/20 µs according to IEC 61643-11, with dimensions of 34 x 28 x 14 mm. The monitor outputs of these varistors are designed without electrical isolation.
