Atlantik Elektronik, provider of innovative wireless solutions, presents at the embedded world trade fair in Nuremberg (March 14-16, hall 3, booth 141) the low-power Wi-Fi module SX-SDMAC from Silex for the Internet of Things (IoT). Its industrial temperature support, robust enterprise security and 802.11ac capabilities make it an ideal solution for applications like factory automation with demanding environmental conditions such as with extreme temperatures, dirt, dust, moisture, shock, and vibrations. Its low power consumption also makes it suitable for portable handheld devices.

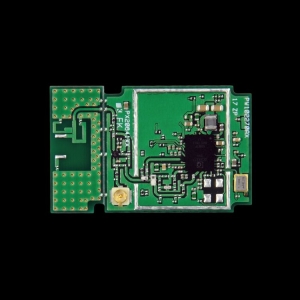

The Silex SX-SDMAC is a dual-band IEEE802.11a/b/g/n/ac WLAN plus Bluetooth 4.1 BR/EDR/LE Smart Ready SDIO module based on the Qualcomm Atheros QCA9377 System-on-Chip (SoC).
The SX-SDMAC ships with the following features:
- Low Power Dual-Band 1×1 Module for Wi-Fi & BT
- Based on the QCA9377-3 Chipset
- 802.11 a/b/g/n/ac Wave 2 MU-MIMO
- Bluetooth 4.1 BR/EDR/LE Smart Ready
- SDIO 3.0 WLAN Host Interface
- On-chip Power Management Unit (PMU)
- Link Rate up to 433 Mbps
- Hardware recieve diversity
- Supports UART as the host IF of Bluetooth
- Calibrated Tx Power per module
- FCC/IC/ETSI/TELEC modular certification
- Connector Mount and Surface Mount Versions
- Pin Compatibility with SX-SDMAN Offers an Upgrade PathSX-SDMAC supports 802.11ac multi-user MIMO (Wave 2) feature which can increase the overall WLAN system performance.
- In order to expedite your product development process, Atlantik Elektronik can provide hardware and software engineering services including custom application development.

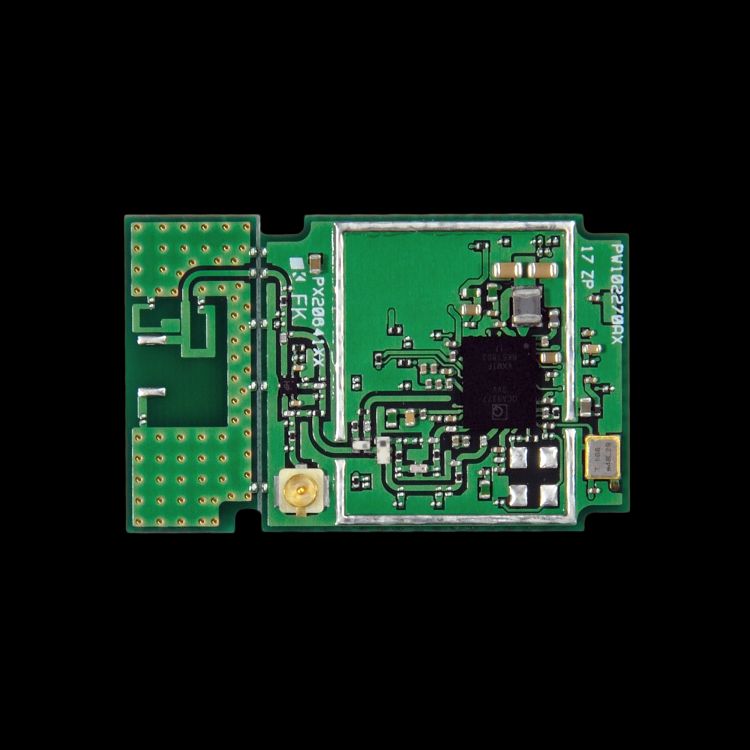

- SX-SDMAC operates on a single regulated 3.3V power supply and it comes in surface mount (SMT) and board to board connector (B2B) form factors. The SX-SDMAC has a 50 ohm U.FL connector as a connection interface for an external antenna. There is also an option to use an onboard printed antenna for the surface mount (SMT) version.
