Teledyne LeCroy today introduces the HDO4000A, HDO6000A, HDO8000A, and MDA800A analog and mixed-signal oscilloscopes. These four high-definition oscilloscope product lines range from 200 MHz – 1 GHz bandwidth and utilize 12-bit HD4096 technology. This technology arrived in 2012 and remains unique in the market place. Today’s announcement takes these ground-breaking products to new levels of measurement capability. HDO-A oscilloscopes now automatically ensure optimal display of acquired waveforms to the instruments’ full rated bandwidth. Additionally, the next-generation MAUI® with OneTouch user interface makes measurement setup insanely easy and provides users dramatically faster time to insight when debugging complex signal abnormalities. Lastly, the updated PC systems with faster processors, more CPU memory, and solid-state drives add even more value. With the HDO-A introduction, the world’s highest definition oscilloscopes become even more powerful and productive with 10x oversampling, the most efficient and intuitive user interface, and a supercharged PC system.

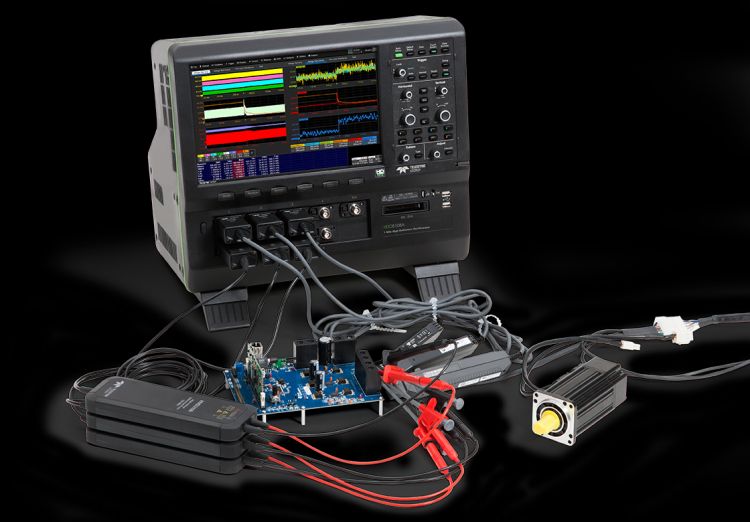

All HDOs are ideal for debugging and troubleshooting power electronics, automotive electronics, and embedded/mechatronic designs with high-resolution sensor signals. They are the favored oscilloscopes in automotive, digital power management, power integrity, physics, and military/aero applications. The eight channels provided by the HDO8000A series are ideal for high power and/or three-phase power conversion testing and digital power management validation. MDA800A Motor Drive Analyzers, which are built on the HDO8000A platform, also perform three-phase electrical and mechanical power calculations with unique static and dynamic power views as well as complete control system validation.
HDOs owe their high performance to bandwidths up to 1 GHz, acquisition memory of up to 250 Mpt/ch, and 12-bit vertical resolution. There are also mixed-signal oscilloscope (MSO) options/models. All HDOs offer an extensive array of serial trigger, decode, measure/graph, and eye diagram (TDME) options. All of the above, coupled with many other general-purpose and application-specific probes and software options, have made the HDOs an industry favorite.
HD4096 High Definition Technology finds its roots in high-sample-rate 12-bit ADCs, high signal-to-noise ratio amplifiers, and low-noise system architecture. This technology enables HDO-A oscilloscopes to capture and display signals of up to 1 GHz at 16 times more resolution than other oscilloscopes. In the HDO-A oscilloscopes, HD4096 technology is augmented by Enhanced Sample Rate technology, which automatically ensures optimal display of acquired waveforms to the instruments’ full rated bandwidth.
All HDO-A oscilloscopes feature MAUI with OneTouch, which extends Teledyne LeCroy’s long tradition of user-interface innovation. MAUI with OneTouch optimizes convenience and efficiency by enabling all common operations with a single touch of the display. This user interface has revolutionary drag-and-drop actions to copy and set up channels, math functions, and measurement parameters without lifting a finger. Common gestures such as drag, drop, pinch, and flick facilitate instinctive interaction with the oscilloscope. The “Add New” button quickly enables a new channel, math, or measurement while traces and parameters turn off with a flick of a finger. In sum, MAUI with OneTouch delivers a unique set of touchscreen gestures that simplifies measurement setup and brings unsurpassed efficiency and intuitiveness to oscilloscope operation.
For more information, visit Teledyne LeCroy’s website at teledynelecroy.com.
