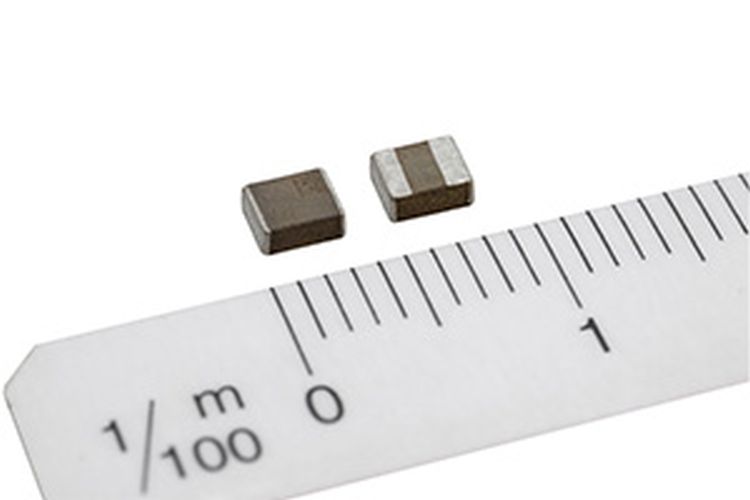

TDK Corporation (TSE: 6762) has developed new power inductors, BCL322515RT, for use in automotive electronics, intended for insertion into the power line of an automobile electronic control circuit. Mass production will launch in October 2020.
Using TDK’s proprietary material technologies and structure design, the inductors achieve high inductance (47 μH) in a small size (3.2 x 2.5 x 1.5 ㎜). The saturation current is 0.72 A. In addition, by using metallic magnetic material as a core material, they were downsized by approximately 35% compared to products that used conventional ferrite material with similar attributes. The rated voltage is 40 V, and they can be used in a primary power supply circuit, which is input directly from an in-vehicle 12 V battery. The operating temperature range is from -55 to +155℃ (including self-temperature rise), which supports severe temperature environments. In addition, the connection structure between the winding wire and the external electrode is designed to reduce open risks, ensuring high reliability.
Recently, automobiles are increasingly likely to have an electronic control unit for information communication and self-driving, resulting in an increased number of inductors for power supply circuits used in the units. TDK will expand its lineup in the BCL series to meet a variety of customer needs for power inductors to be used in automotive electronics, such as downsizing.
Further information on the products can be found under https://product.tdk.com/info/en/catalog/datasheets/inductor_automotive_power_bcl322515rt-d_en.pdf
