DIN Power Supplies TDK-Lambda – excellent solutions for automation and industry
Power supplies and complementary modules from TME’s offer TDK-Lambda designed for mounting on DIN rails. These solutions are designed with industrial automation, control systems, building technical infrastructure, and applications requiring high reliability and stable power supply parameters in mind.
Below we present the series available for sale, from economical units for standard applications through models with increased efficiency and advanced functions, up to redundancy modules, buffer modules, and DC power supplies with battery backup.
In this text, we discuss topics such as:
- DRB and DRB 3 Phase – universal power supplies for industry
- DRF and D1SE – high efficiency and greater design flexibility
- DRL – low-profile power supplies for building automation and light industry
- DRM40 – redundancy modules for systems with increased availability
- DBM20 – buffer modules for short-term power backup
- DUSH – DC power supplies with UPS function for critical systems
- Comprehensive power supply solutions at TME
TDK-Lambda DIN rail power supplies
DRB and DRB 3 Phase – universal power supplies for industry
The DRB series is a proven switching power supply for typical applications in control cabinets, machines, and technological installations. They combine a compact design with good energy efficiency and compliance with industrial standards requirements.
Single-phase models cover power ranges from 15W to 480W. The most commonly used output voltages are available, including 12V, 24V, and 48V. The housing design allows efficient use of space on the DIN rail, which is important in distribution panels where space saving is essential.
The power supply has overcurrent protection (OCP), overvoltage protection (OVP), and overheating protection (OTP)
The DRB 3 Phase version is a three-phase solution with power up to 960W. It is adapted for operation with AC or DC power, offering high efficiency and very good resistance to disturbances. Thanks to the parallel operation function and advanced diagnostic signals (including DC-OK), it is suitable for more demanding industrial systems where process stability and high installation availability are important.
Typical applications:
- production lines and industrial machines,
- automation distribution panels,
- charging systems and renewable energy installations,
- building technical infrastructure.
DRF and D1SE – high efficiency and greater design flexibility
The power supply is designed to operate within the temperature range of -25 to 70°C
The DRF series is designed for applications where high efficiency, reduced heat loss, and energy-saving operation in idle mode are important. Models with power ratings from 120W to 960W achieve efficiency up to 94% and offer 150% peak power, facilitating powering loads with high inrush current.
Units are narrow, allowing reduction of the width of the field in the control cabinet. Remote on/off control and output status signaling increase integration capabilities with the master system.
The D1SE series is a new generation of power supplies with power from 120 to 480W, distinguished by very high efficiency (up to about 95%) and the ability to operate with both AC and DC voltages. The boost power function increases design flexibility especially when modernizing existing systems.
The use of push-in terminals speeds up assembly and improves vibration resistance. Versions with protected printed circuit coatings are also available, designed for environments with increased humidity or significant dust.
Recommended for:
- modern control cabinets where space saving is necessary,
- energy-saving applications,
- modernization of existing installations,
- systems operating in harsh industrial conditions.

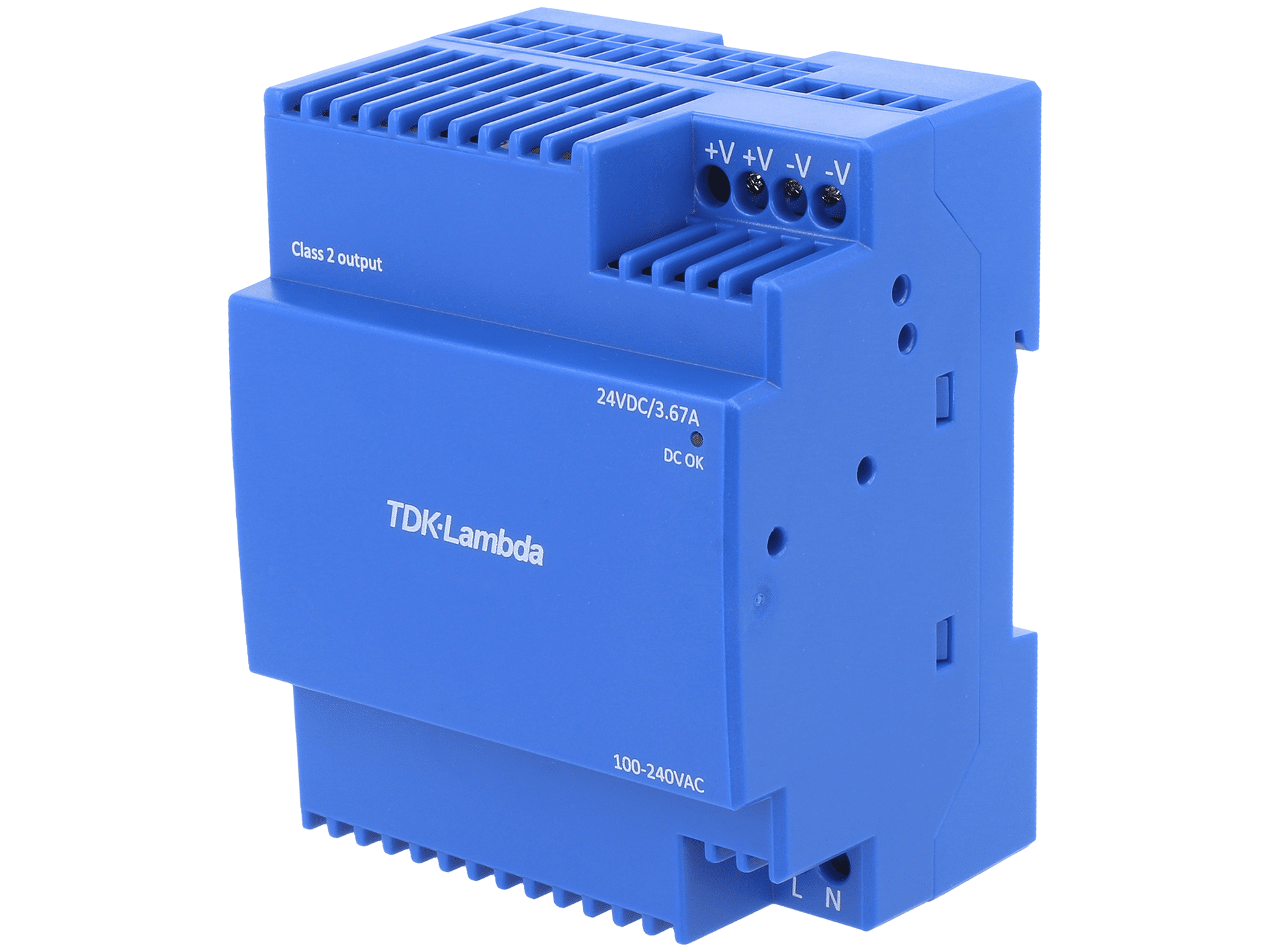

DRL – low-profile power supplies for building automation and light industry
The DRL series consists of compact, low-profile power supplies with power ratings from 10W to 100W. They are intended for applications where small dimensions, double insulation (class II), and simplified installation without the need to connect a protective conductor are important.
High efficiency, low energy consumption at no load, and long lifespan of electrolytic capacitors make DRL series power supplies suitable for systems operating continuously, such as building automation, HVAC controllers, and auxiliary installations.
Electrical connection is made through a terminal strip
Applications:
- BMS systems,
- ventilation and air conditioning controllers,
- monitoring and measurement equipment,
- simple automation circuits with low power.
DRM40 – redundancy modules for systems with increased availability

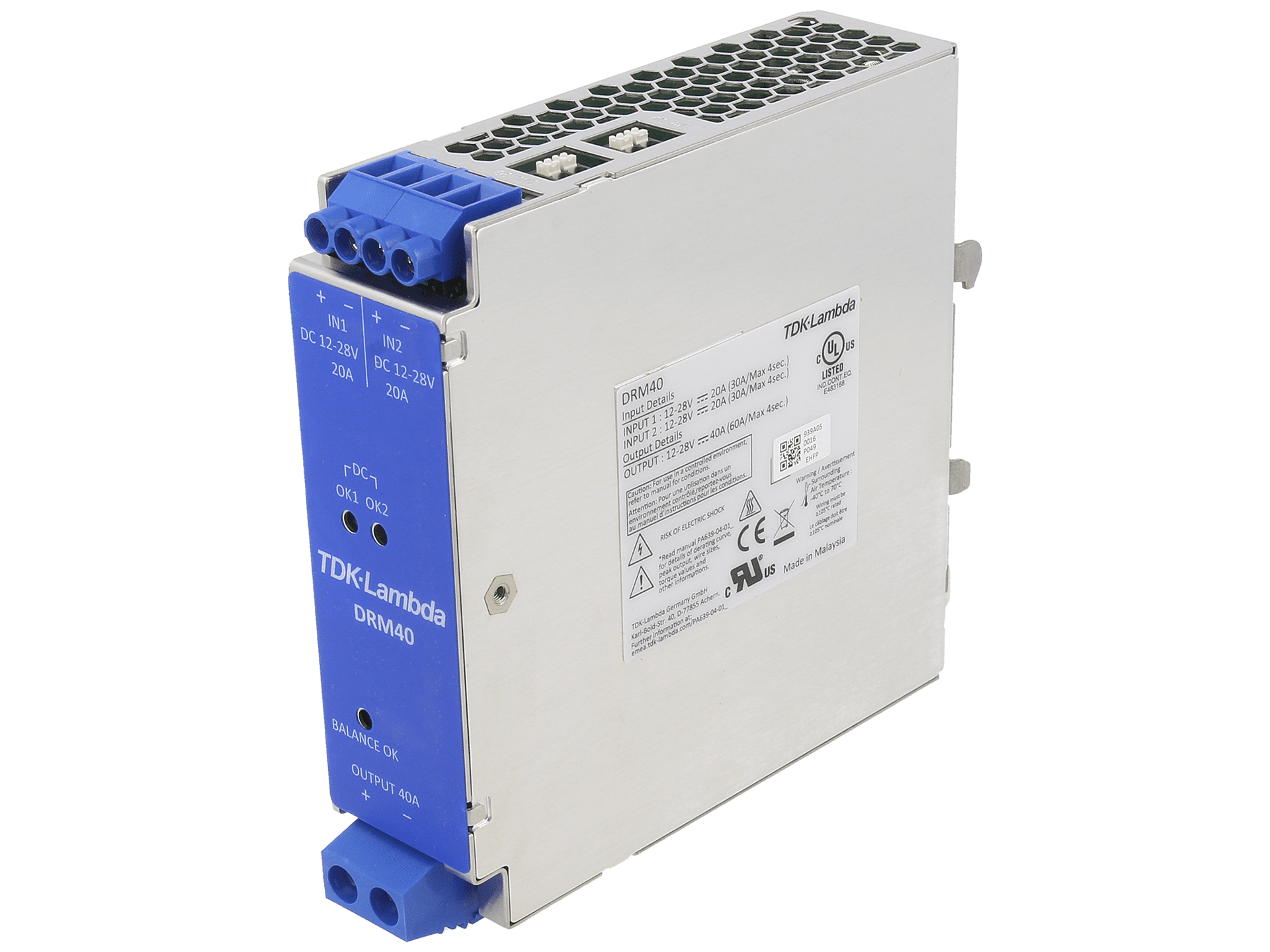

Redundancy module for DIN rail
The DRM40 series consists of redundancy modules designed to work with 24V DC power supplies. They enable creating N+1 configurations or parallel connection of two units to increase reliability.
Low internal voltage drop reduces power loss, and status signaling along with optional current balancing indicators facilitate diagnostics. This is a solution for applications where power interruption means production downtime or risk of data loss.
Typical areas of use:
- systems with continuous 24/7 operation,
- IT and telecommunications infrastructure,
- technological installations with high reliability requirements.
DBM20 – buffer modules for short-term power backup
DBM20 is a 24V DC buffer module that extends power backup time in case of a short power outage. Energy is stored in electrolytic capacitors, providing additional runtime sufficient to safely stop processes or save data.
Parallel operation of multiple modules is possible to extend backup time. This solution is effective wherever short voltage dips could cause uncontrolled equipment shutdowns.
Module operating mode is indicated by an LED

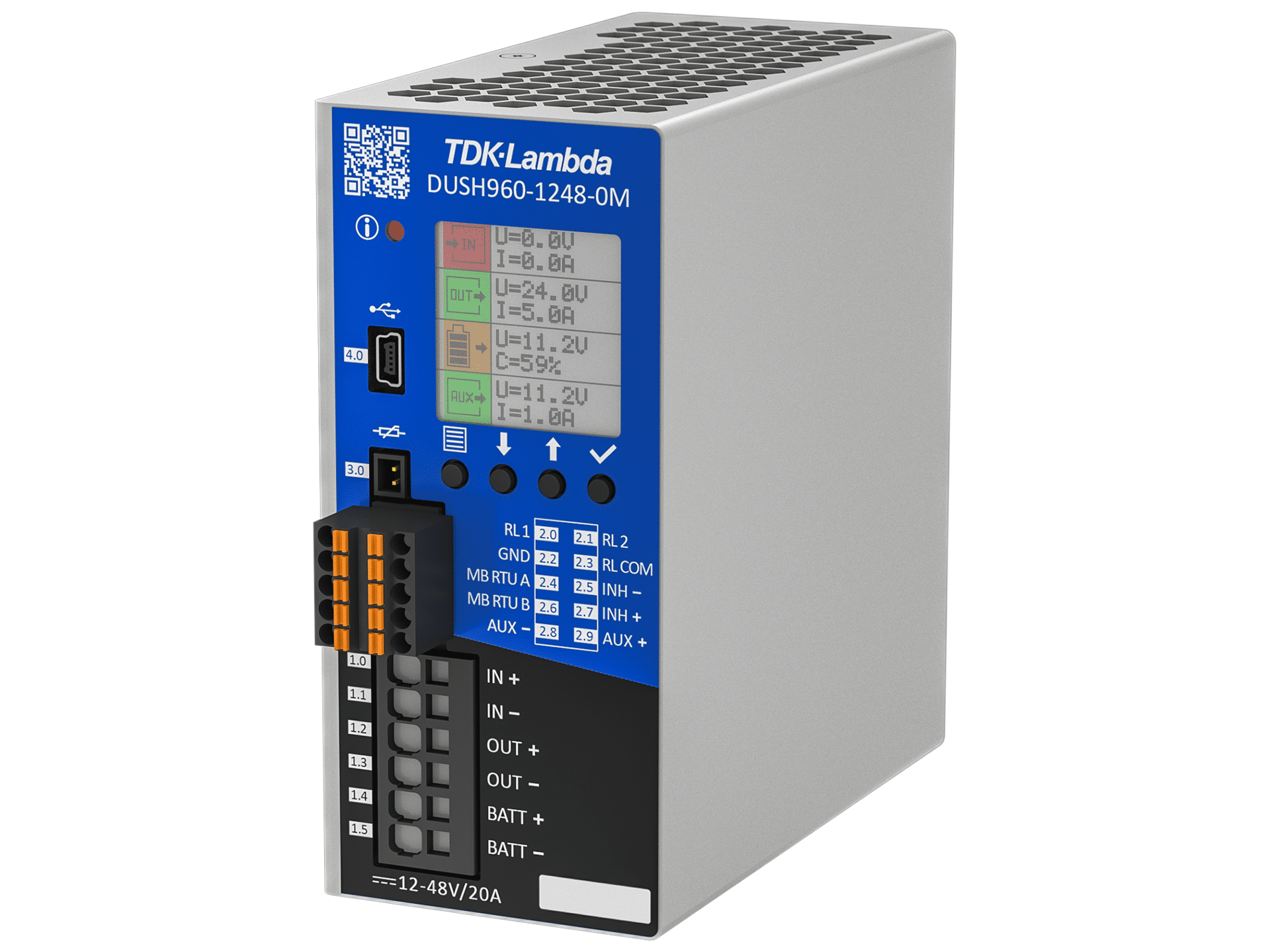

DUSH – DC power supplies with UPS function for critical systems
This model achieves efficiency up to 98%
The DUSH series consists of DC power supplies with uninterruptible power supply functionality, designed for DIN rail mounting. The devices support a wide range of input and output voltages and work with various types of energy storage, from lead-acid and nickel batteries to lithium batteries and supercapacitors.
An integrated DC/DC converter separates the load voltage from the battery voltage, allowing stable output parameters. The monitoring system (including via Modbus RTU) enables control of operating status, battery parameters, and system diagnostics.
This solution is intended for applications where continuous power is critical, such as process industry, critical infrastructure, measurement, and communication systems.
Comprehensive power supply solutions at TME
Power supplies from TDK-Lambda available at TME allow building complete power supply systems on a DIN rail, from basic units through high-efficiency solutions to redundant configurations and battery-backed systems.
Thanks to a wide power range, diagnostic functions, and integration possibilities with master systems, these products can be used both in simple control applications and in advanced industrial systems requiring high reliability and continuous power supply.
