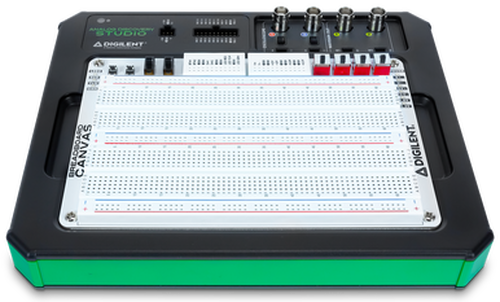

Analog Discovery Studio: A portable circuits laboratory

The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface.

Analog Inputs:

  • Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
  • Two analog input channels, accessible through BNC or MTE connectors
  • Channel type: differential (with MTE) or single-ended (with BNC)
  • Analog bandwidth with BNC cables: 30+ MHz @ 3dB
  • Analog bandwidth with MTE flywires: 9 MHz @ 3dB
  • Input range ±25 V (±50 V diff)
  • Input protected to ±50 V
  • 14-bit resolution
  • Operate at 100 MS/s

Analog Outputs:

  • Used in the Waveform Generator and Network Analyzer
  • Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
  • AC amplitude (max): ±5 V
  • Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
  • Operate at 100 MS/s
