High density power and signal Molex Picoflex® ribbon Connectors save space in high-vibration and shock environments – now available from TTI, Inc.

Suits automotive, industrial and consumer applications; reliable solution when flat ribbon connectors unsuitable; new Series reverse footprint SMT headers



March 2017 – Highly reliable power and signal Molex Picoflex® connectors are now available in Europe through TTI, Inc., a world leading specialist distributor of electronic components. Tested to meet the requirements of high-vibration and shock environments found in a wide number of industrial, consumer and automotive products, Molex Picoflex® connectors have a space-saving, robust package which suits diverse wire-to-board applications and also mates with industry-standard 1.27mm pitch ribbon cable. They are available in 4 to 26 circuits. Suitable applications include vehicle infotainment systems, telecommunications equipment, industrial power supplies, solar converters and inverters, portable heart monitors, and office equipment. Molex has now expanded the Picoflex family to include reverse-footprint SMT headers, with and without latches, which provide a cos-effective alternative second-source system with no necessity for expensive board re-design.

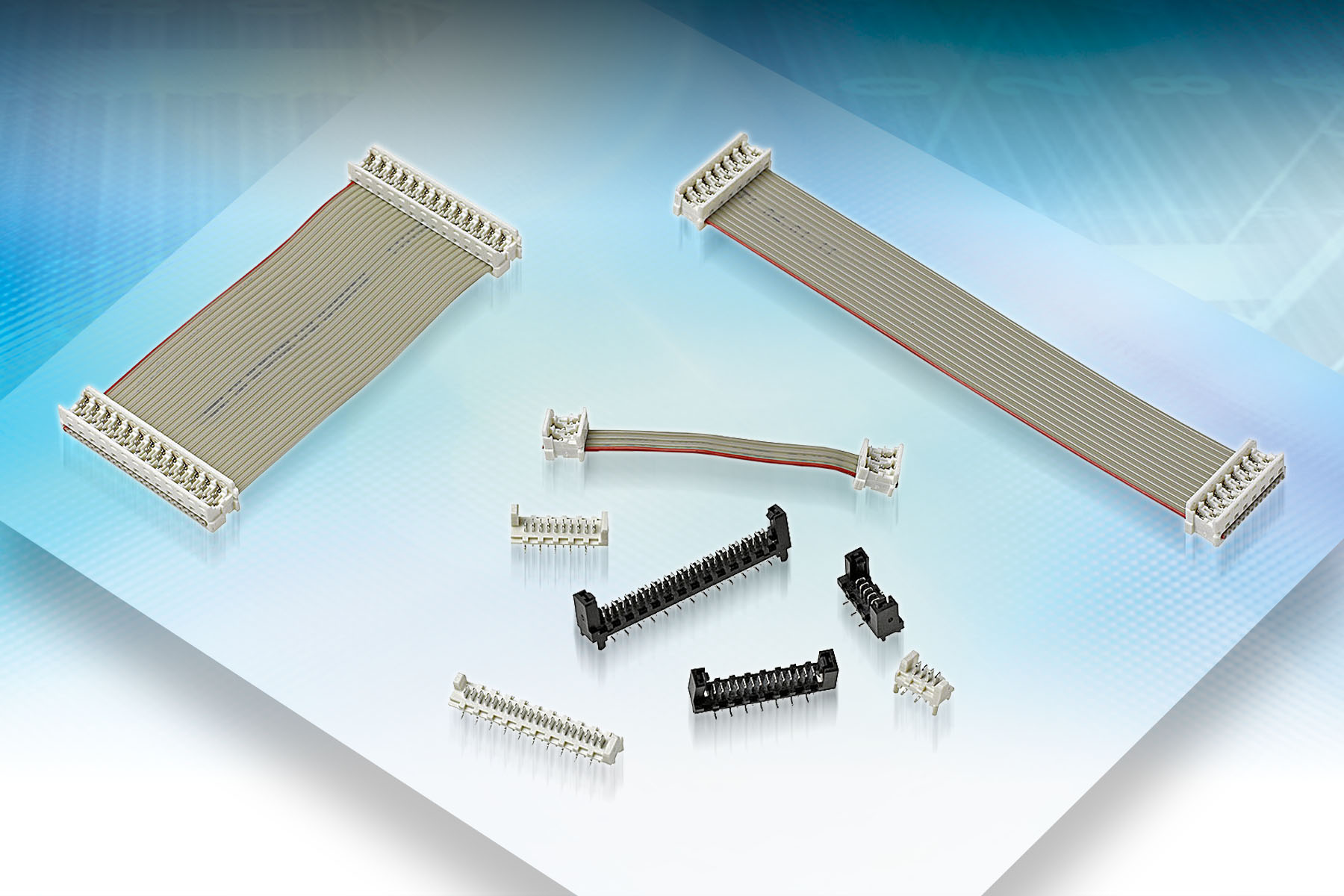

picoflex-neutral-background-march-17

Molex Picoflex connectors save space as they have a mated height of only 6.40mm in vertical mating configurations, 15% less than traditional 1.27mm connector systems. The robust single piece upper housing also provides excellent cable retention and is ideal for space-constrained applications. A feature of the high-reliability contact is a four-point interface with the cable and two points of contact between the header and the receptacle. The Molex Picoflex connector range also offers excellent polarisation to both the PCB and between the female connector and header.



Multiple series of Picoflex connectors are available, including: through hole, high-temperature, right-angle header; SMT latched header with positive-latch feature giving 50% extra retention; SMT low-profile header creating a double-sided board effect with single-sided SMT process for easier assembly; vertical through-hole header manufactured in high-temperature nylon 4/6 for IR compatibility; and others. The new Picoflex Reverse Footprint SMT headers include the reverse footprint, vertical header 93405 Series, the 93407 Series reverse footprint vertical SMT latched header and the 90327 Series low profile, IDT connector.



About TTI, Inc.

TTI, Inc., a Berkshire Hathaway company, is one of the world’s leading specialist distributors of passive, connector, electromechanical, discrete, power and sensor components. TTI’s philosophy is “Lead by Design”, and the company differentiates itself by focusing on people, parts and process. TTI in Europe strives to be the distributor of choice for customers and suppliers alike by introducing new product technologies and by stocking broad and deep inventory across its franchise base. TTI’s sophisticated inventory management system ensures the ability to service changes in demand due to fluctuating markets and supply chains. For more information about TTI, please visit http://www.ttieurope.com.
